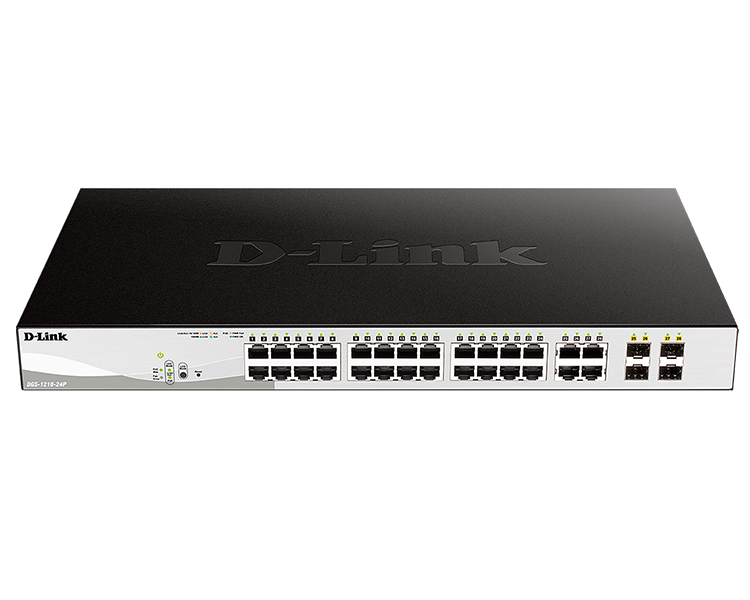

DES-1210-28P: 24-Port Fast Ethernet PoE Smart Switch with 4 Gigabit Ethernet ports (including 2 Combo SFP) (24 x PoE ports, smart fans)

Especificaciones:

Features

Flexible Hardware Design

24/48 10/100 BASE-TX port configurations
2 Combo 1000 BASE-T/SFP ports
802.3at (PoE+)1 and 802.3af (PoE)2 capable

Security Features

Access Control List
D-Link Safeguard Engine
Port Security
ARP Spoofing Prevention
DHCP Server Screening
Smart IP-MAC-Port Binding

Advanced Features

Auto Surveillance VLAN
Auto Voice VLAN
Loopback Detection
Cable Diagnostics
LLDP/LLDP-MED

Intuitive Management

Can be managed through the D-Link Network Assistant Utility or the Web-based GUI
Built-in SNMP MIB for remote NMS (D-View 6.0)
Compact CLI through Telnet

Performance

Switch Capacity

DES-1210-28P - 12.8 Gbps

64-Byte Packet Forwarding Rate

DES-1210-28P - 9.5 Mpps

MAC Address Table Size

8K

Packet Buffer

DES-1210-28P - 4.1 Mbits

Flash Memory

16 MB

Software

L2 Features

MAC Address Table
DES-1210-08P/28/28P: 8K entries
Flow Control
802.3x Flow Control
HOL Blocking Prevention
Port Mirroring
One-to-One
Many-to-One
Supports Mirroring for Tx/Rx/Both
Spanning Tree
Supports 802.1D STP 2004 edition
Supports 802.1w RSTP
Supports Root Restriction (defined in 802.1Q-2005)
802.3ad Link Aggregation
DES-1210-28/28P:
Max. 8 groups per device/8 ports per group

L2 Multicasting

Forward all unregistered groups
Filter all unregistered groups
MLD snooping
Support MLD v1,v2
256 MLD snooping groups
IGMP Snooping
Supports IGMP v1,v2, v3 awareness
Supports 256 IGMP snooping groups
Supports 64 static multicast address

VLAN

802.1Q tagged VLAN
VLAN Group
Max. 256 static VLAN groups
Max. 4094 VIDs
Management VLAN
Asymmetric VLAN
Auto Voice VLAN
Auto Surveillance VLAN

Quality of Service (QoS)

802.1p
Max. 8 queues per port
Queue Handling
Strict
Weighted Round Robin (WRR)
Bandwidth control
CoS Based on:
802.1p
DSCP
ToS
TCP/UDP port number
IPv6 traffic class
